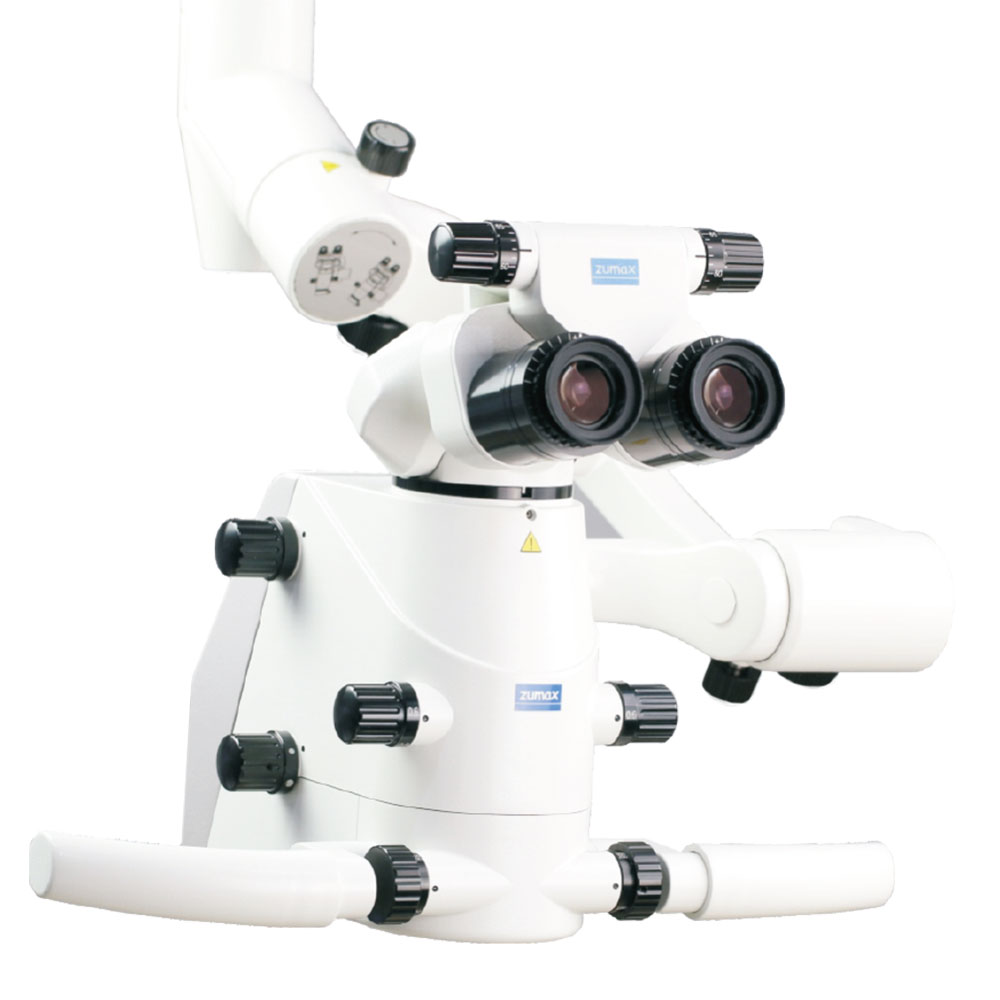

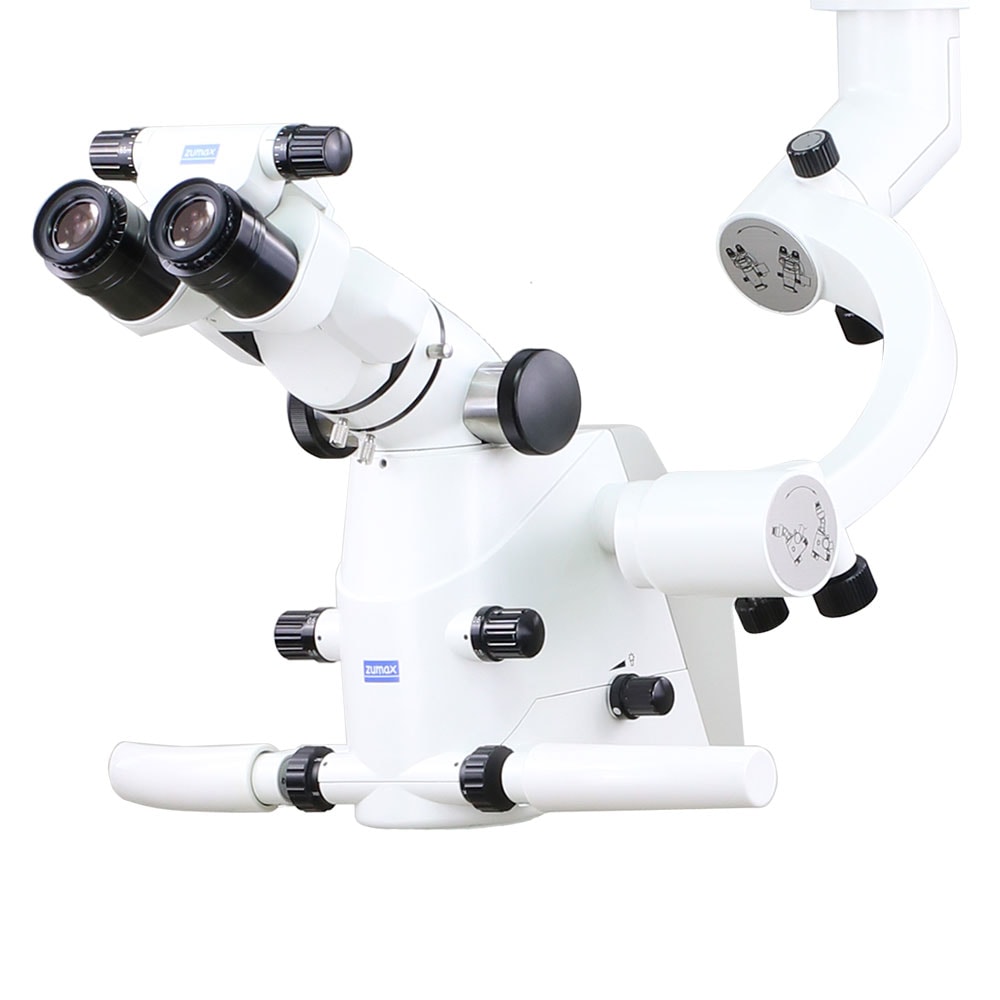

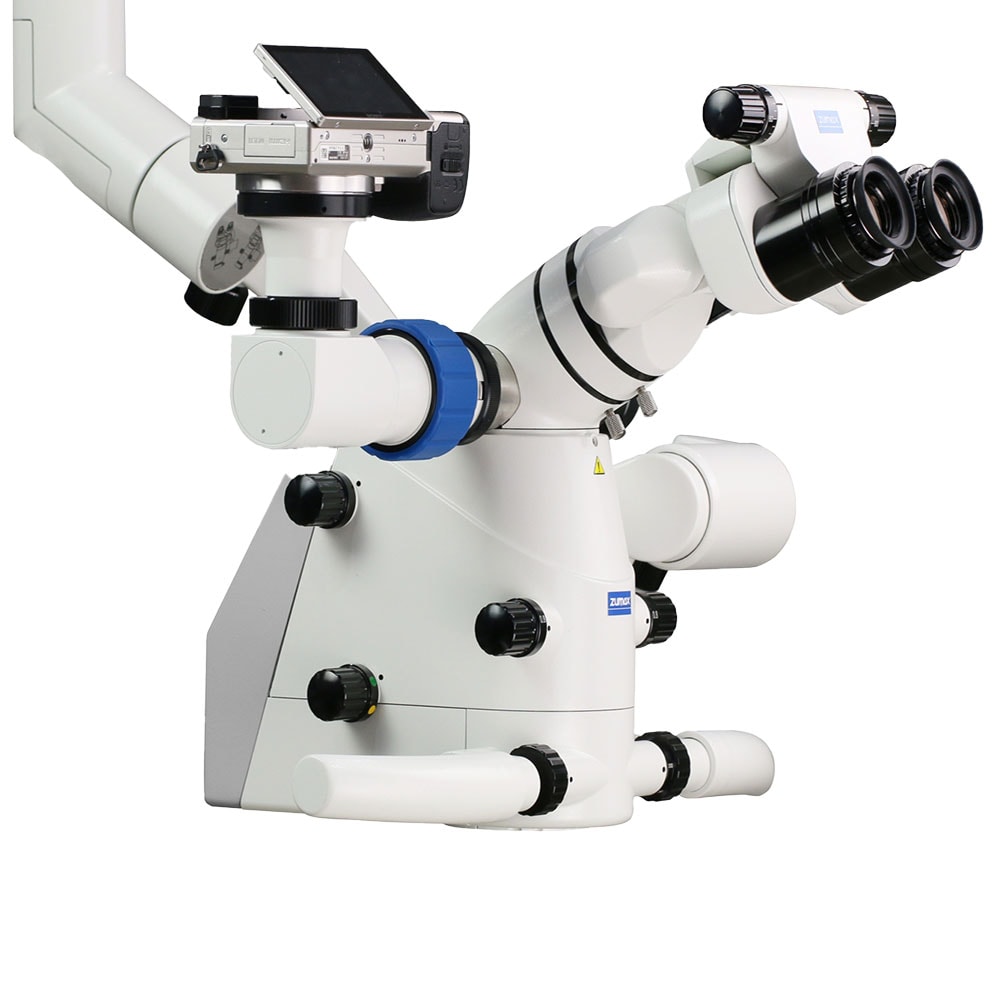

OMS2360 Product Overview
Available with 6-step magnification supported by 10x, 16x and 20x eyepieces to deliver a superb field of view through multi-coated optics reducing optical aberration.
Includes:
- LED illumination microscope incorporating inclinable binocular head

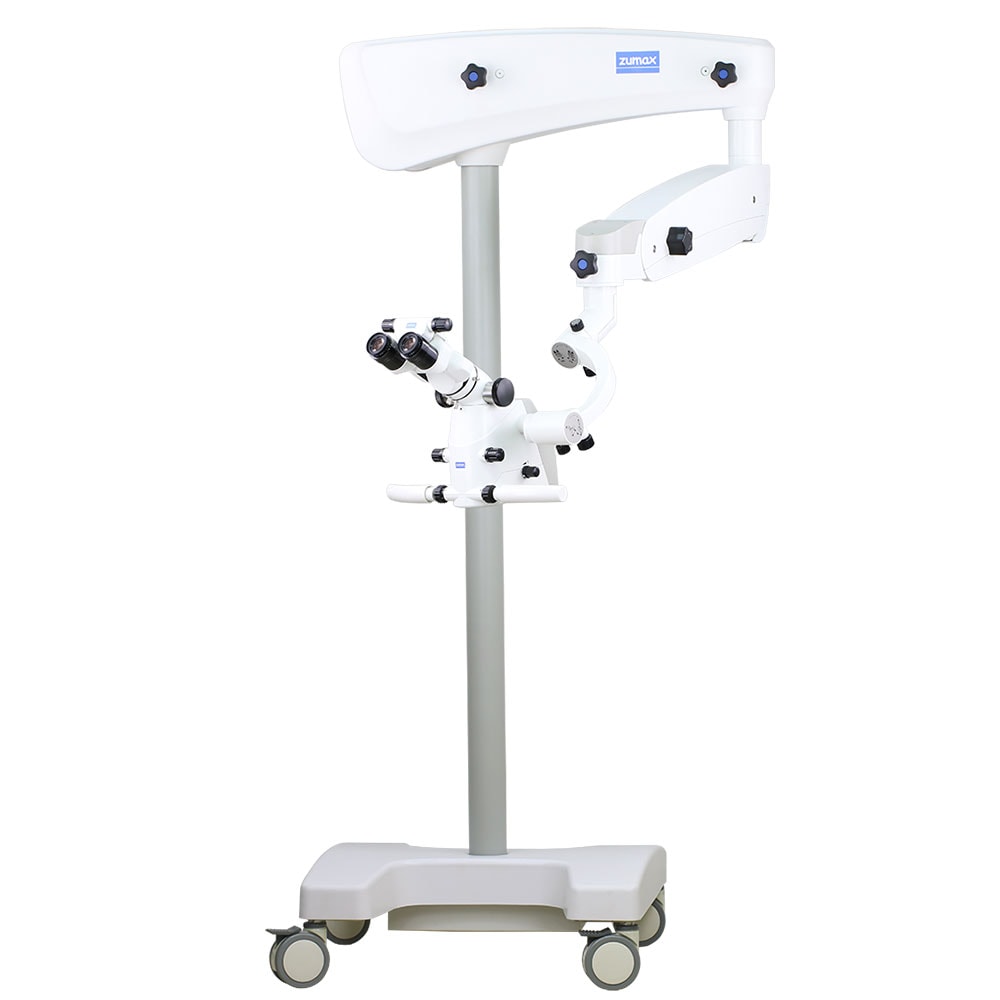

- Option mounting: mobile base, wall, ceiling or fixed floor
- Superb, integrated TrueTone™ LED illumination provides excellent colour characteristics
- The working life of over 20,000 hours of continuous use
- Super balancing arm ensures an ultra-smooth and fluid movement during repositioning
- 720mm second arm, optional 1000mm
- 0 – 180° inclinable binocular head

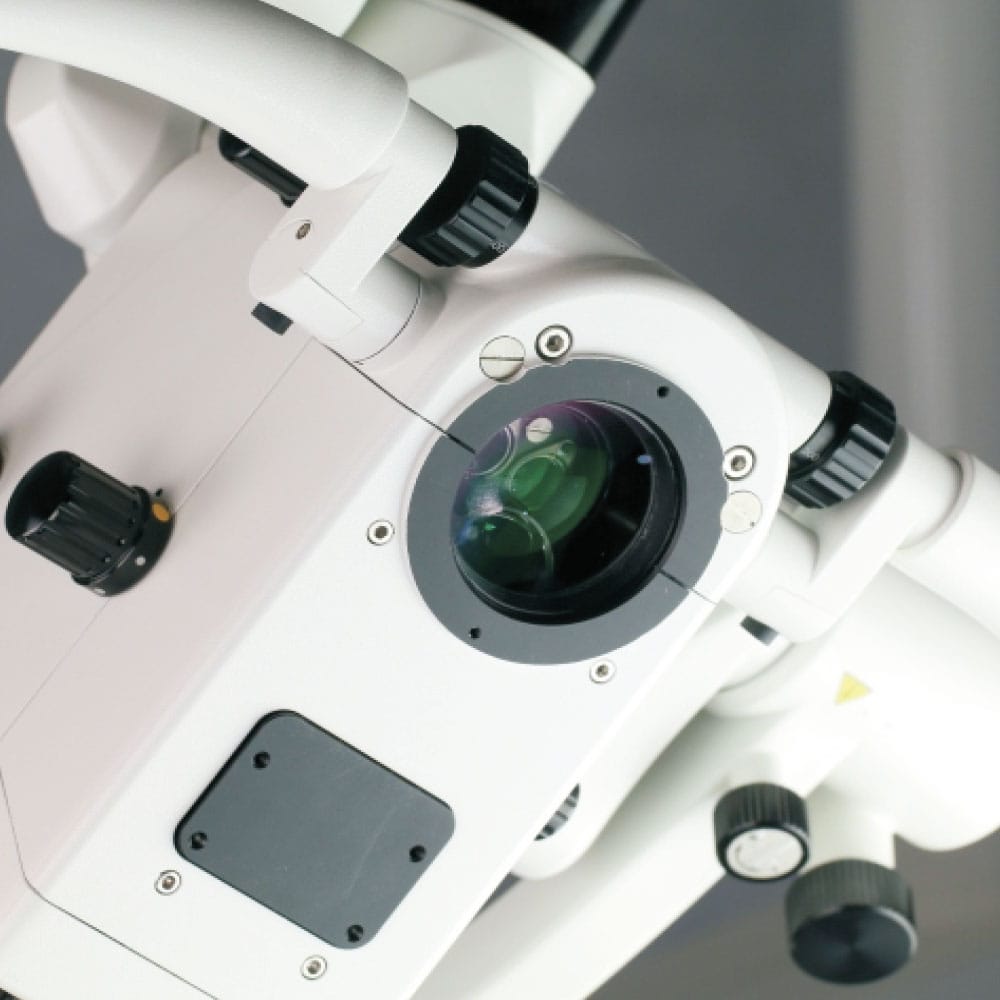

- VarioDist® objective lens with a variable working distance of 200 – 450mm
- 6 step magnification changer
- 12.5x eyepieces
- The pendulum function allows the viewing lens to remain in the upright position
- Integrated yellow and green filters with 4 illumination spot sizes
- Training is made easy, with the optional high definition interface that allows remote viewing
- Available with high definition camera
- Excellent ergonomics, easy to use
- Adaptable, wide choice of options regarding eyepiece magnifications, focal lengths and available mountings ensures all user preferences
- No replacement bulb costs reduced power consumption and durable construction

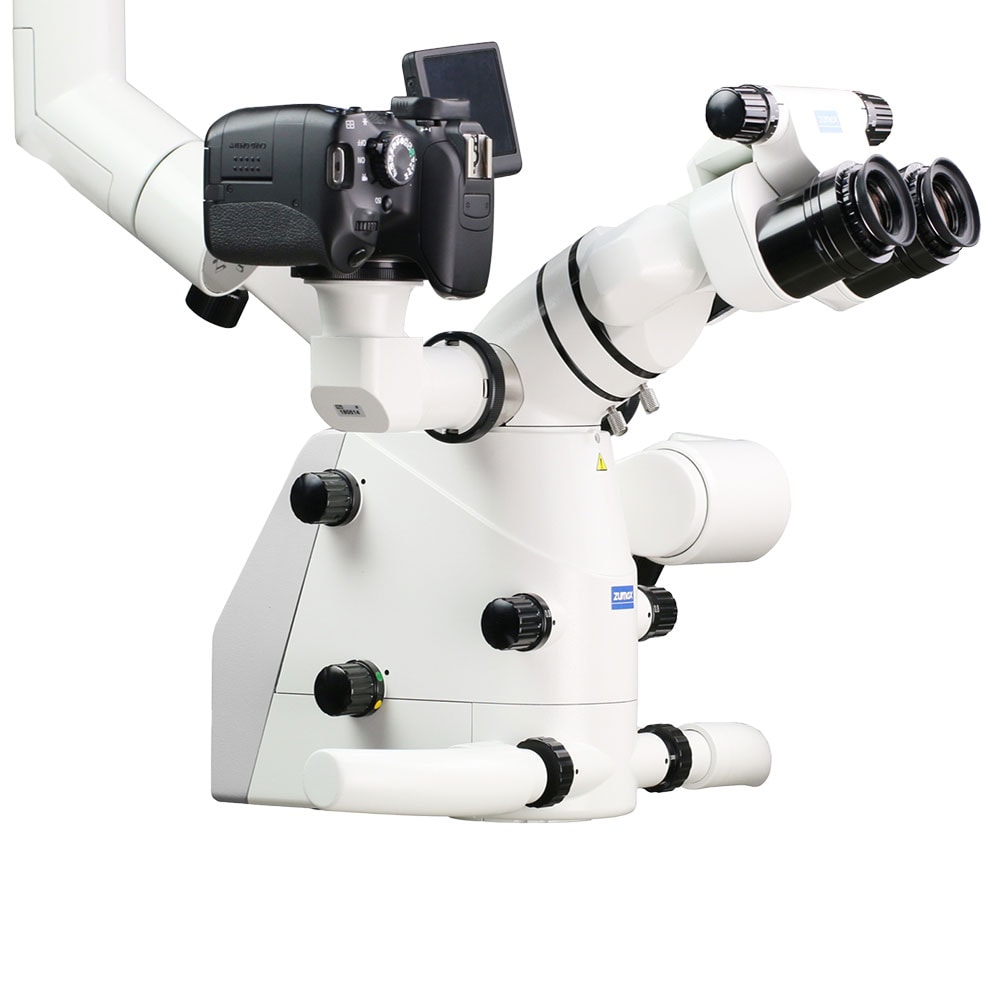

- Available with an integrated full HD camera with SD memory system
- Can be supplied with 30 Deg binocular extender and beam splitter
- Pendulum function allowing 25º left and right inclination
- Brightness control knob
- 120º balancing arm
- Integrated full HD video camera system
- VarioDist objective lens – variable working distance 200 – 450mm
- Magnification system: 6 step changer – 0.3x, 0.5x, 0.8x, 1.2x, 2x and 3x
- Multi-coated, anti reflective optics manufactured in Germany to reduce optical aberration
- Tubes: 0 – 180º inclinable tube with PD adjustment
- Eyepieces: 10x, 16x and 20x eyepieces wide field, with integrated eyecups – also suitable for spectacle wearers
- Fine focus: 12mm range
- Illumination system: 70,000 lux at working distance of 250mm

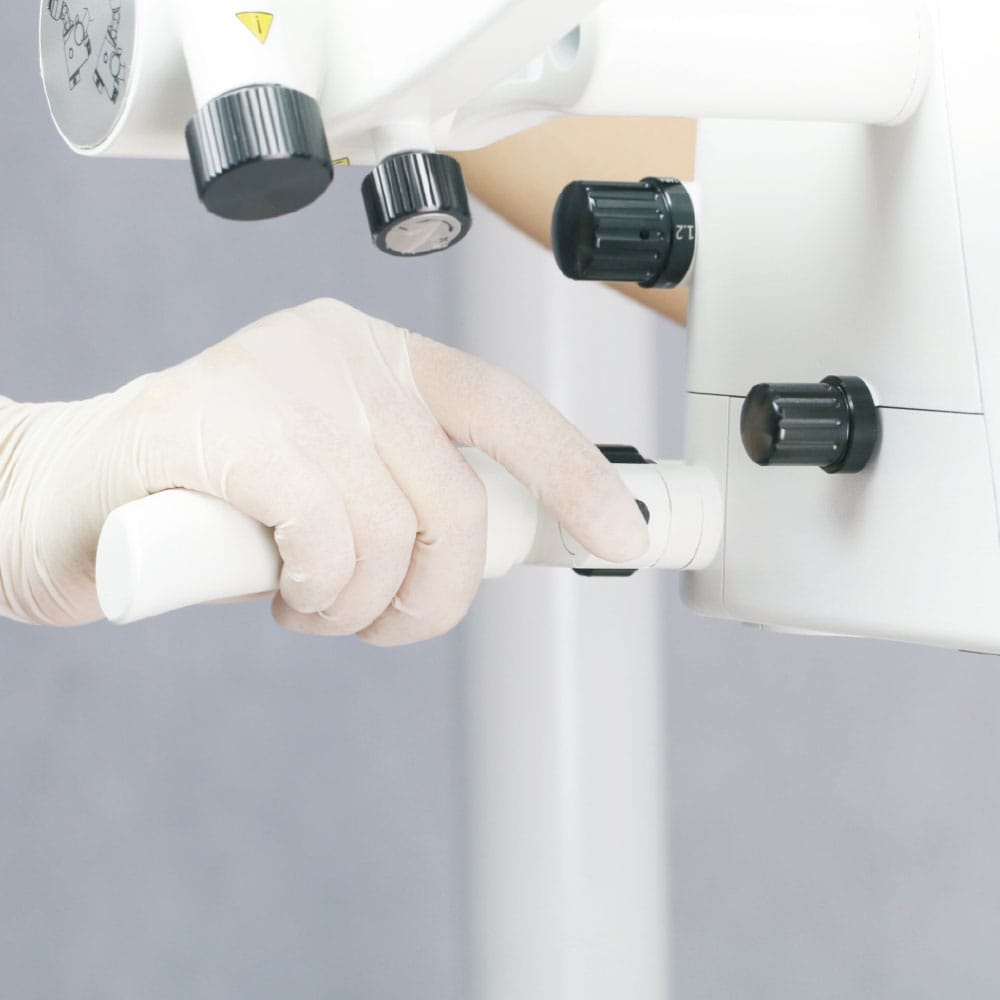

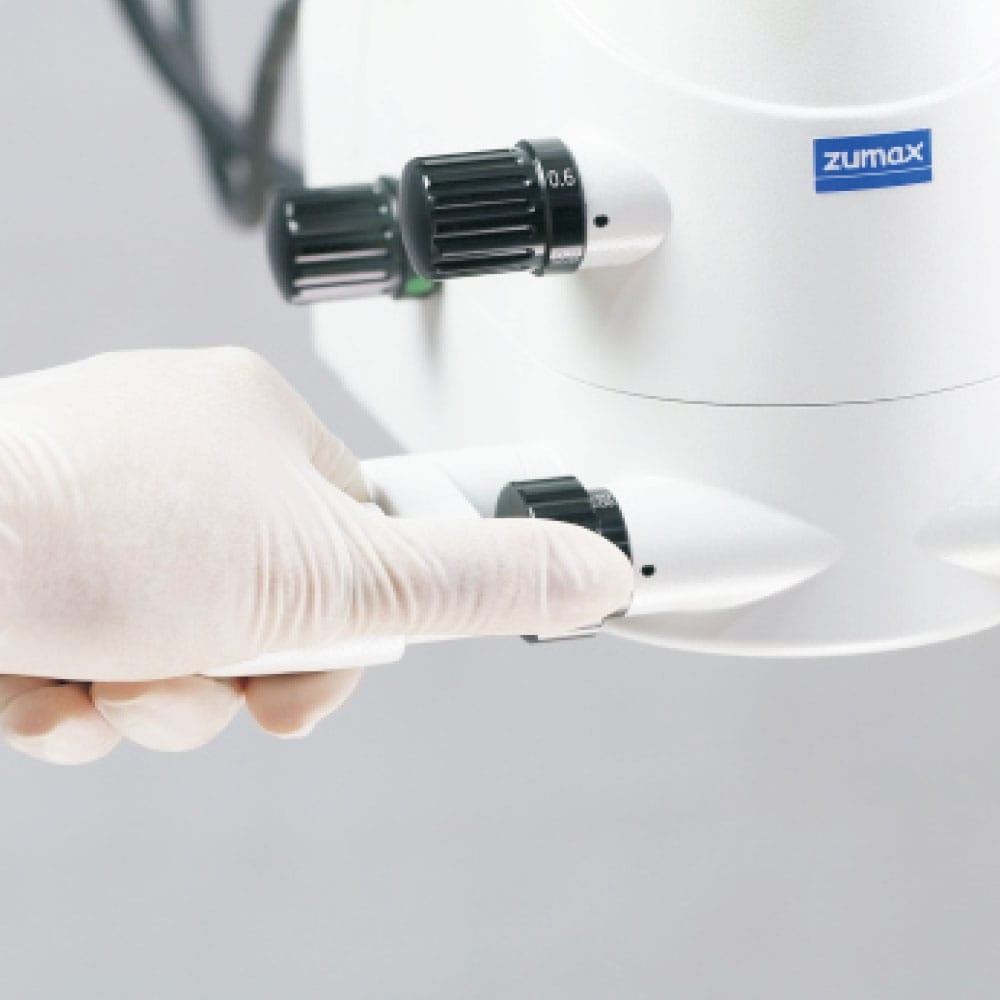

- Handgrip: 360º rotatable
- LED guarantee: 10 years
To improve your posture whilst using our dental microscopes we can offer our superb, ergonomic Salli Dental Chairs.
Servicing and Warranty
U.K. Based servicing, distribution and repair facility ensures prompt response times and peace of mind.
Standard 2 year warranty upgradeable to 5 years when registering your purchase.
For a free no obligation discussion or demonstration simply contact us:
Phone: 01202 601177 Email: [email protected]
Dental Microscopes Model Comparison
| Model | 1950 | 2350 | 2000 | 2050 | 2360 | 2380 | 3200 |
|---|---|---|---|---|---|---|---|
| Specification | |||||||
| Magnification | 5 Step | 5-6 Step | 5 Step | Continuous | 6 Step | Manual | Motorized |
| Objective Lens | F250mm | F250mm | - | - | - | - | - |
| Vario Dist Lens | Optional | Optional | 210 - 460mm | 190 - 480mm | 200 - 450mm | 200 - 450mm | 200 - 450mm |
| Illumination System - Lux @ 250mm Working Distance | 50,000 | 60,000 | 55,000 | 60,000 | 70,000 | 70,000 | 80,000 |
| 0 - 180 Degree Inclinable Binocular | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Eyepiece Magnification - 12.5x | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PD Adjusting Knob | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Working Distance Stop | - | - | ✔ | ✔ | - | - | ✔ |
| Integrated Yellow/ Green Filter | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Handgrip 360 Degree Rotatable | ✔ | - | ✔ | ✔ | - | - | - |
| Multi-Functional Handle | - | - | - | - | - | - | ✔ |
| Brightness Control Knob | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Light Spot Size Adjustment | ✔ | - | ✔ | ✔ | ✔ | ✔ | ✔ |
| Beam Splitter | Optional | Optional | ✔ | ✔ | Optional | Optional | Optional |
| View Pivot Arm | - | - | ✔ | ✔ | - | - | - |
| 120 Degree Balancing Arm | Optional | Optional | ✔ | ✔ | - | - | - |
| Fine Super Balance Arm | Optional | Optional | - | - | ✔ | ✔ | ✔ |
| Pendulum Function - Right & Left Inclination | - | - | ✔ | ✔ | - | - | - |
| Pendulum Pro Arm | - | - | ✔ | ✔ | - | - | - |
| Rotating Ring | Optional | Optional | - | - | Optional | Optional | Optional |

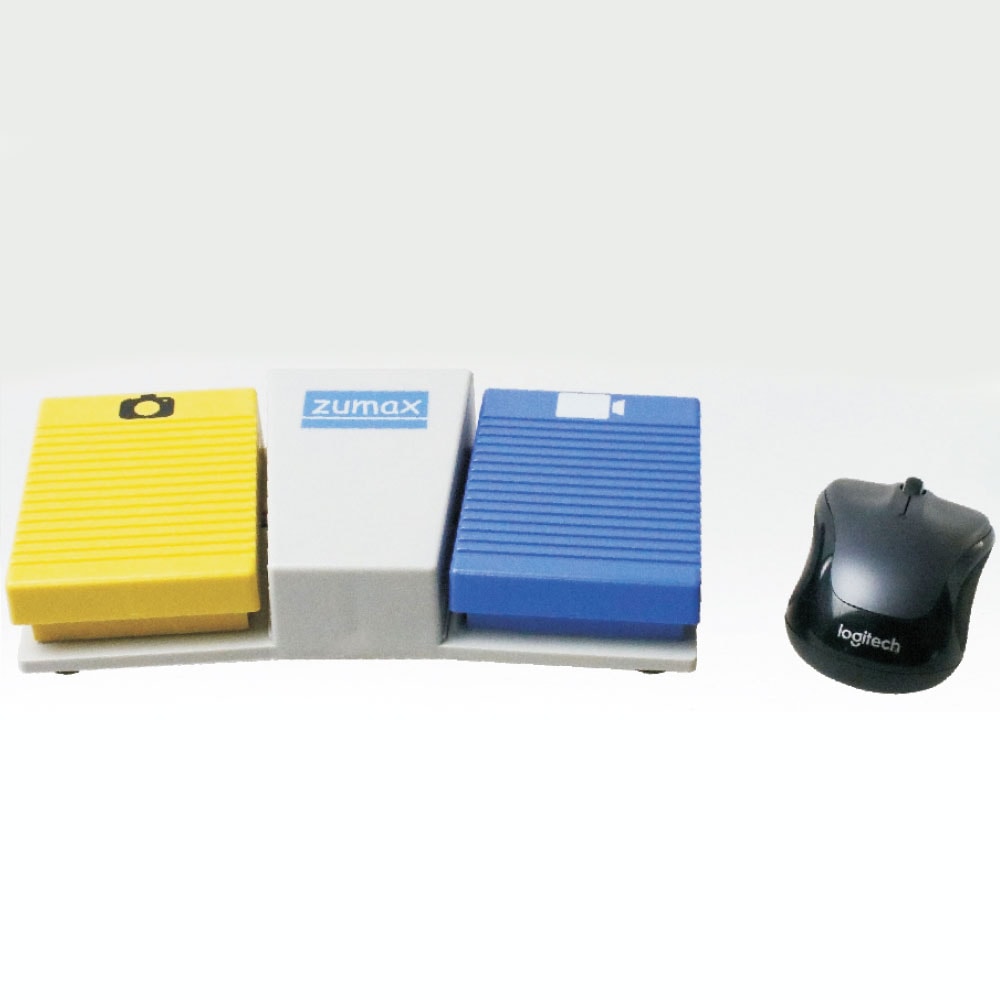

| Foot Pedal Control | - | Optional | ✔ | ✔ | ✔ | ✔ | Optional |
| BriPlus Illumination System | - | - | - | - | - | Optional | Optional |
| Smart Mon LCD Display | - | - | - | - | - | - | ✔ |
| Free Mov Electromagnetic System | - | - | - | - | - | - | ✔ |
| High Definition Camera | - | Optional | - | - | Optional | Optional | Optional |
| 3D | - | Optional | - | - | Optional | Optional | Optional |
| 4K Camera | - | - | ✔ | ✔ | Optional | Optional | Optional |
| Twin LED | - | - | - | - | Optional | Optional | Optional |
| Image Recording | - | - | - | ✔ | Optional | Optional | Optional |
| Laser Filter | - | Optional | Optional | Optional | Optional | Optional | Optional |
| Mounting | |||||||
| Floor | - | Optional | Optional | Optional | Optional | Optional | Optional |
| Base | ✔ | Optional | Optional | Optional | Optional | Optional | Optional |
| Ceiling | - | Optional | Optional | Optional | Optional | Optional | Optional |
| Wall | - | Optional | Optional | Optional | Optional | Optional | Optional |
